Resources

The sets of data we manage can be thought of as resources. Each resource is represented by a shape of data consistent across interfaces.

Common Types#

In this documentation we use TypeScript to illustrate data. Below are common types shared across some resources.

Opportunity#

interface Opportunity {
id: string;
numericValue: number;
numericUnit?: 'millisecond' | string;
rating: 'average' | 'error' | 'fail' | 'pass' | string;
}

Opportunities are load opportunities from the performance category exposed in the resulting JSON response from Lighthouse audits and consumed by Lighthouse's report renderer to display "opportunities" in the generated HTML report. It maps id fields to audit definitions. The rating field is what determines the color of bars seen in the "opportunities" section of the HTML report and reflects the opporunity impact.

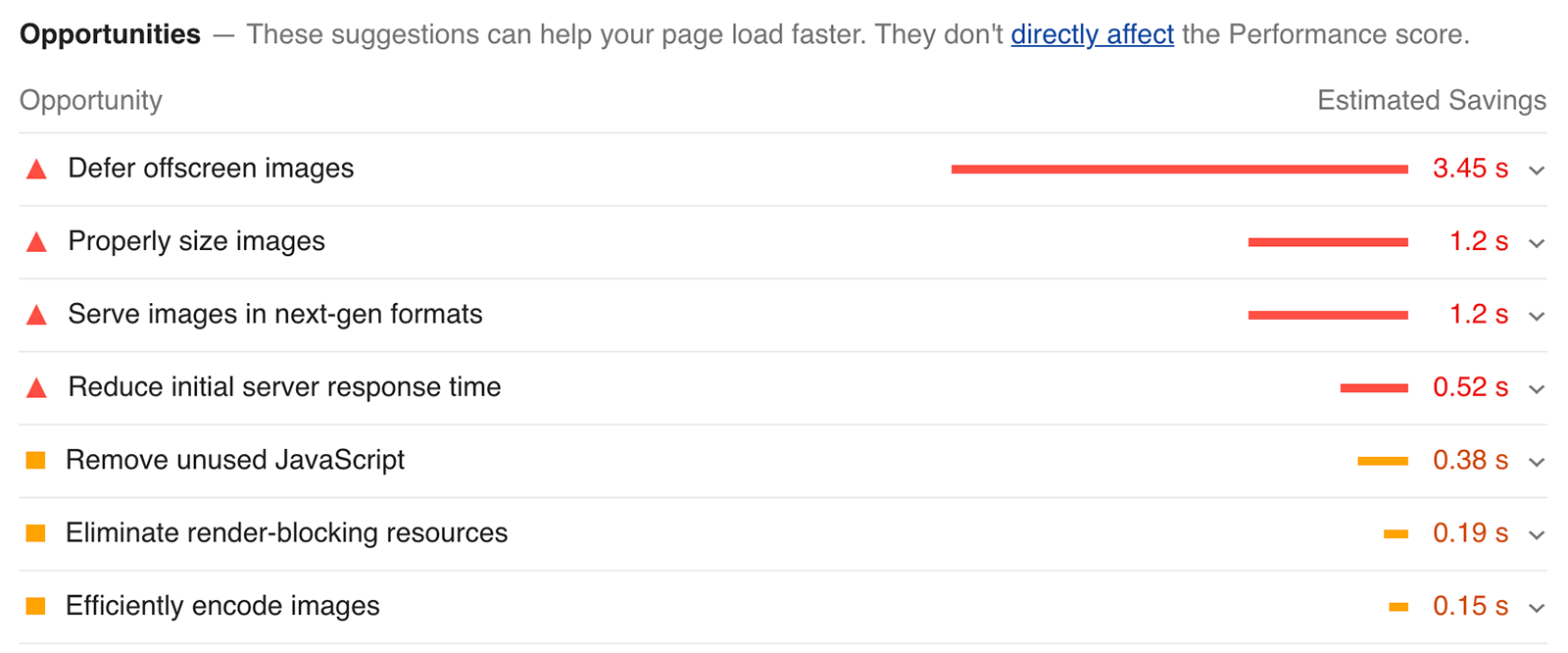

Lighthouse HTML report - opportunities
Opportunities section of a Lighthouse generated report

In the above report, the first corresponding opportunity looks like the below.

{
"id": "offscreen-images",
"numericValue": 3450,
"rating": "fail"
}

Device#

type Device = 'desktop' | 'mobile';

Lighthouse can mimic a desktop or mobile experience by emulating the device and typical corresponding network conditions.

Page#

interface Page {
apiToken: string;
createdAt: string;
device: DeviceType;
id: string;
name: string;
url: string;
}

A Page represents a URL and corresponding info to run Lighthouse audits against on Foo.

Page: Important Characteristics#

  • name is a user-defined field to describe the page.

QueueItem#

interface QueueItem {
createdAt: string;
id: string;
index?: number;
pageId: string;
status: 'available' | 'busy';
tag: string;
type: string;
waitSeconds?: string;
}

Foo manages a queue of Lighthouse audits to run on a group of pods within a cluster. When a pod becomes available, it picks the next item from the queue with an available status and marks it as busy. QueueItems with an available status are essentially Lighthouse audits waiting to start and all have associations to a Page resource. When the corresponding Lighthouse audit has completed, the QueueItem resource is deleted and a LighthouseAudit resource is created from it. The processing of this queue utilizes the FIFO (First In First Out) method.

QueueItem: Important Characteristics#

  • index represents the number in the queue order of an item. 1 means the item is next in line while 0 means a queue item is currently being audited by Lighthouse. If there are 25 items in the queue an index of 24 would mean that item is last. Note: index is calculated after creation and will not be populated in the creation response.
  • pageId is the id of a page enqueued to be Lighthouse audited.
  • status is the queue status. available is the value of status when a page is waiting to be Lighthouse audited and busy when an audit is in progress.
  • tag is a user-defined or auto-generated string to describe the specific Lighthouse audit. On Foo users can tag an audit and can also do so via the API. This tag is transmitted to the resulting LighthouseAudit resource.
  • type is the type of run being executed in terms of Foo's services. At the time of this writing, the only possible value of this field is lighthouseAudit but there will be others in the future.
  • waitSeconds is an approximate value in seconds to account for the wait time of an item to be completed. This value should be taken with a grain of salt and not heavily relied upon. As our infrastructure changes, this value will be less reliable. This field will be either deprecated or revamped in the future at which time this doc will be updated. Note: waitSeconds is calculated after creation and will not be populated in the creation response.

LighthouseAudit#

interface LighthouseAudit {
createdAt: string;
device: Device;
error: string;
finalScreenshot: string;
id: string;
lighthouseVersion: string;
opportunities: Opportunity[];
pageId: string;
queueId: string;
report: string;
scoreAccessibility: number;
scoreBestPractices: number;
scorePerformance: number;
scoreProgressiveWebApp: number;
scoreSeo: number;
tag: string;
url: string;
}

LighthouseAudit is the resulting payload from a Lighthouse audit on Foo.

LighthouseAudit: Important Characteristics#

  • finalScreenshot is a URL the last screenshot image captured by Lighthouse in the life cycle of the audit, hosted by Foo.
  • error is only populated when Lighthouse exposes and error like PROTOCOL_TIMEOUT. Typically scores will be 0 when this happens.
  • opportunities represent performance load opportunities as detailed in the opportunity section.
  • report is the URL of the HTML report generated by Lighthouse, hosted by Foo.
  • scoreAccessibility, scoreBestPractices, scorePerformance, scoreProgressiveWebApp, scoreSeo are the same scores you woud see at the top of a Lighthouse generated HTML report for each category respectively.
  • tag is a user-defined or auto-generated string to describe the specific Lighthouse audit. On Foo users can tag an audit and can also do so via the API.
